If you have your own departments with which you can cover individual disciplines of a project, then you are also in the right place with us. We can provide you with support in all areas of the value chain during the development of process or production automation.

We understand automation.

Engineering

The key to the successful realisation of a project is to assess the current situation and discuss your wishes and ideas.

Before a concrete quote can be prepared, detailed proposals are drawn up in dialogue with you to determine how the defined goals can be achieved.

The resulting offer is discussed in detail. With our highly committed engineering team, we can support you as a competent and sustainable partner.

ENGINEERING

We'll find the best solution for you

Operating, control and measurement concepts for automation systems as well as device and test equipment construction
Migration strategy for automation systems
Mechatronic solutions
Machine and measuring capability analyses (MFU)
Conducting risk analyses (CE)
Creation of specifications
Project management
We document in accordance with FDA GMP requirements
Selection of suitable device and system technology
Cost analysis
Qualification / Validation

RETROFIT

Robust mechanics - modern control technology

It is not uncommon for machines and systems to last for decades. While the solid mechanics often last for decades and only need to be overhauled, control components and frequently also the drive technology are often no longer state of the art in just a few years.

Retrofit as a cost-effective alternative to buying new

Our service package includes the complete planning and implementation of a retrofit, from the inventory, migration strategy for the control system and software, electrical engineering planning and integration of the control system through to recommissioning.

Software development

Customised Solutions is the solution here, handling complex tasks such as fully automated database connections, PLC and CNC technology with intuitive operating concepts. Proactive implementation in close cooperation and constant consultation with the customer, realised by specialists who know what is important. In order to fulfil our function as a system integrator, we supply manufacturer-independent systems such as Siemens WinCC, TIA, B&R Automation Studio, Beckhoff TwinCAT and Rockwell Studio 5000 or GE products such as iFix.

From the operator panel with simple text display to the PC-supported PCS7 process control system or transfer control, robot integration. Alternatively, C# applications or standardised interfaces such as OPC or ODBC to databases (e.g. SQL) can also be implemented.

We develop the right robot software solution for you. As a Certified System Integrator (CSI) of Universal Robots, among others, we can offer you extremely flexible cobot solutions with these multi-talents. The range of robots from KUKA such as KR CYBERTECH or the new SCARA and DELTA robots, which are also programmed by our programmers, here with the new KUKAs System Software (KSS), complete our portfolio in robot-based applications..

SOFTWARE-ENTWICKLUNG

We are breaking new ground for perfectly automated processes

System design / layout

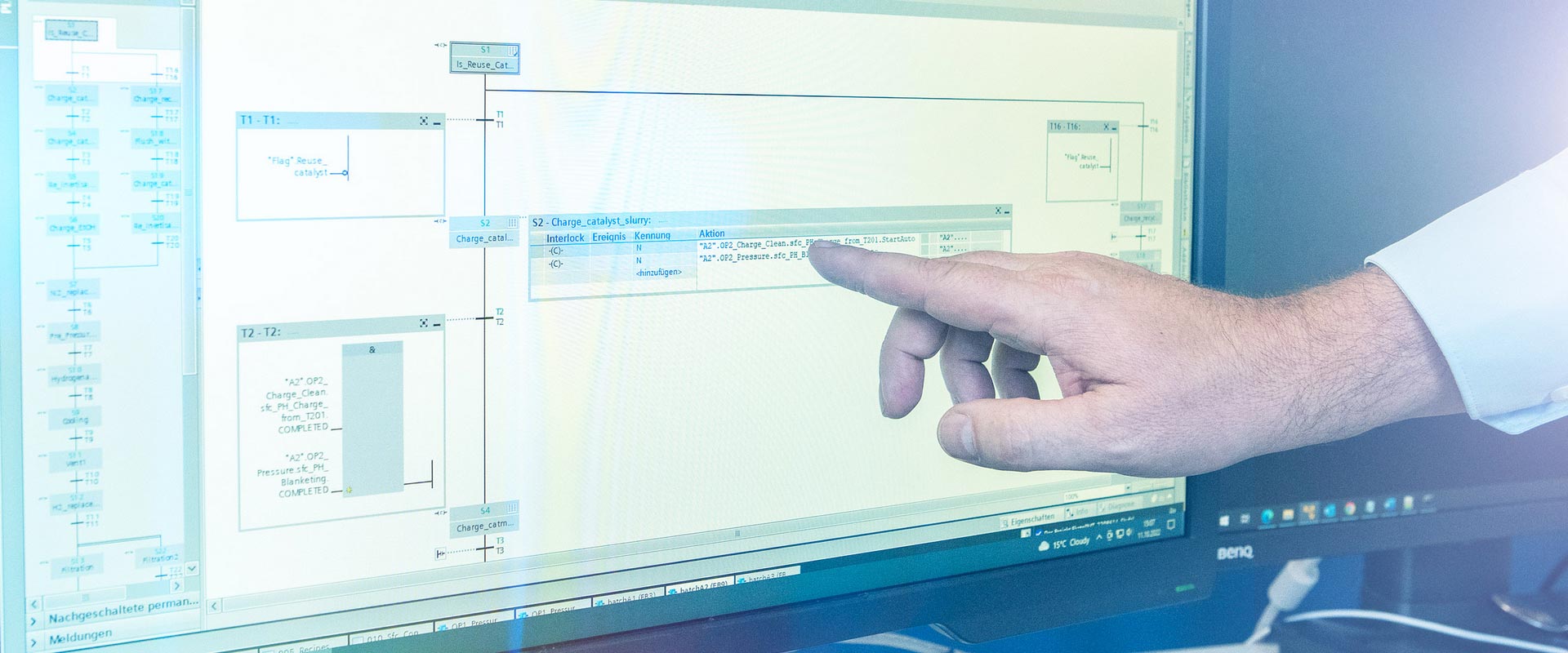

Functional and flow charts
PLC software, NC software
Software für F Systeme
Intelligent drive technology (multi-axis system)
Simulation software
Process control technology
Energy management software
Third-party system coupling
Quick intervention via remote maintenance
FAT – Factory Acceptance Test

We support processes that require validation with Operation Qualification (OQ), Performance Qualification (PQ)

PROCESS VISUALISATION

Processes under control

System consulting, intuitive operating concepts
SCADA, visualisation as a single-user or client-server system
Recipe management
Labelling and reporting
Fully automated database connections (e.g. SQL)
Batch processing
Operating, machine and process data acquisition (BDE/MDE)
Connection of measuring equipment, test bench software
Migration e.g. S5 to S7 or cross-vendor

We support processes that require validation with Operation Qualification (OQ), Performance Qualification (PQ)

Electrical construction

The electrical design created with the EPLAN CAD system is the basis for the concrete realisation of your project. It builds on the results of basic engineering and converts them into production and assembly planning, definition of the measuring point layout, circuit diagrams, wire lists, cable lists and 3D control cabinet layout as a digital twin. This forms the basis for our highly automated processes, such as fully automatic wire set production or control cabinet processing.

EPLAN Fluid forms the unrestricted link between hardware and fluid technology and is therefore the perfectly integrating fluid engineering tool.

We have experienced design engineers who specialise in solutions with ATEX and/or in accordance with North American standards UL/CSA.

As a UL-certified and listed partner of UL Germany in the UL508A panel shop programme (NITW.E526404 - Industrial Control Panels), we are also certified and listed in the panel shop "Industrial Control Panel Relating to Hazardous Locations with Intrinsically Safe Circuit Extensions (NRBX.E527084)".

When selecting the materials, which we procure and manage directly via the EPLAN <-> ERP software interface, we emphasise the latest and most innovative technologies, fully in line with our customers' standards.

HARDWARE-ENGINEERING

We realise your wishes

E-/MSR instrumentation
Wiring and circuit diagrams
Terminal and cable lists, wire, measuring point and parts lists
Listed in the Panel Builder programme, UL 508A certified (NITW.E526404)
Listed: Industrial Control Panel Relating to Hazardous Locations with Intrinsically Safe Circuit Extensions (NRBX.E527084)
Creation of the 3D control cabinet layout "digital twin"
Creation of wire lists for the production of wire sets
CNC-supported control cabinet construction, ProPanel
Fluid circuit diagrams
Installation planning (cable routes, lines, connection techniques, etc.)
Specialised expertise (e.g. SIF, ATEX explosion protection)
We document according to the standards of our customers

MECHANICAL 3D CONSTRUCTION

From concept development to the smallest detail of your product solution

As a design office, we work closely with you to develop complete test equipment and fixture constructions, as well as special machines or robot cells.

When developing the design, we work closely with our colleagues from the electrical planning and software departments. This results in an optimally harmonised overall mechatronic system made by ETU.

But we are equally happy to assist you with the adaptation or expansion of existing systems and the digitisation of old drawings and systems.

To do this, we have to keep breaking new ground, and modern 3D CAD software such as Autodesk Inventor and 2D AutoCAD help us to find an unconventional solution that is customised to your needs. BThe specialised Safexpert software in the planning departments supports us in the creation of risk assessments and compliance with all standards.

Digital twin

Would you like to experience your system live before completion? No problem for us. Thanks to our Industrial Physics simulation software, we can bring your system to life virtually.

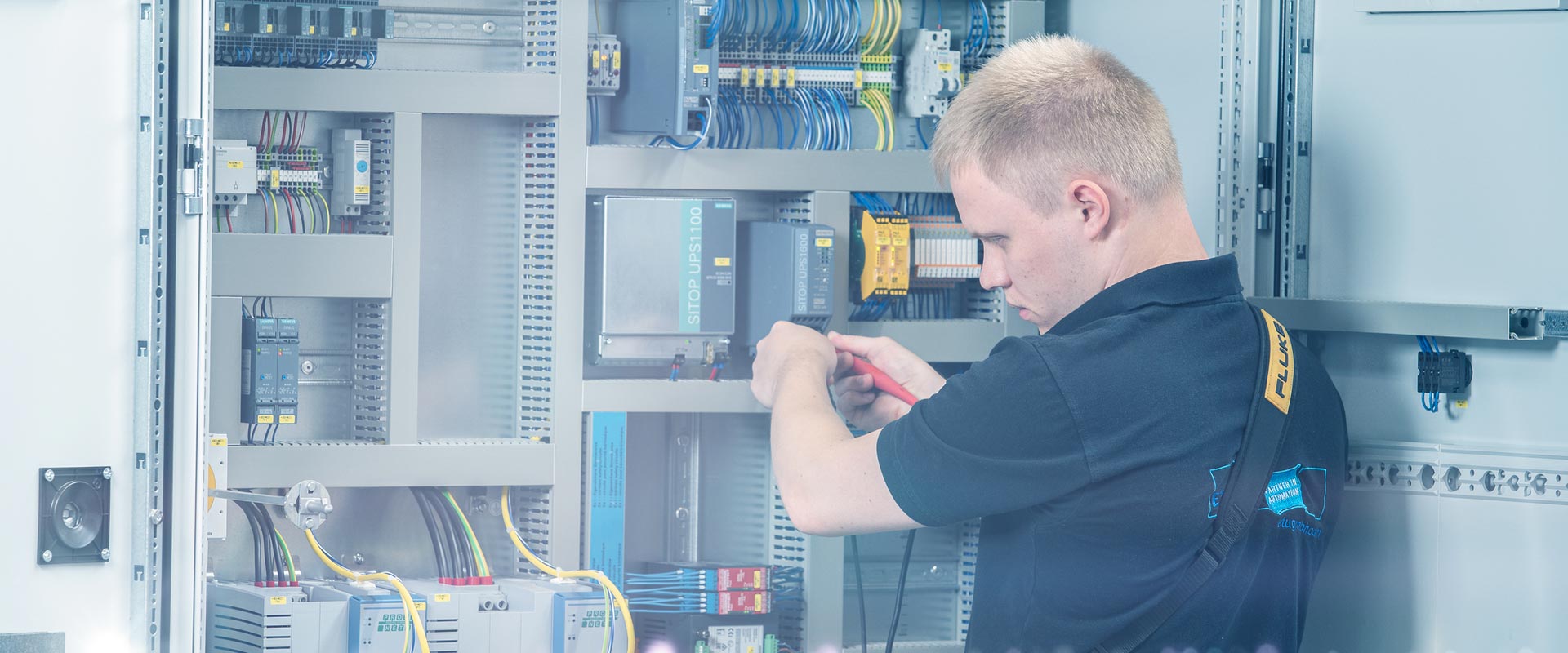

Control cabinet construction and EMSR technology

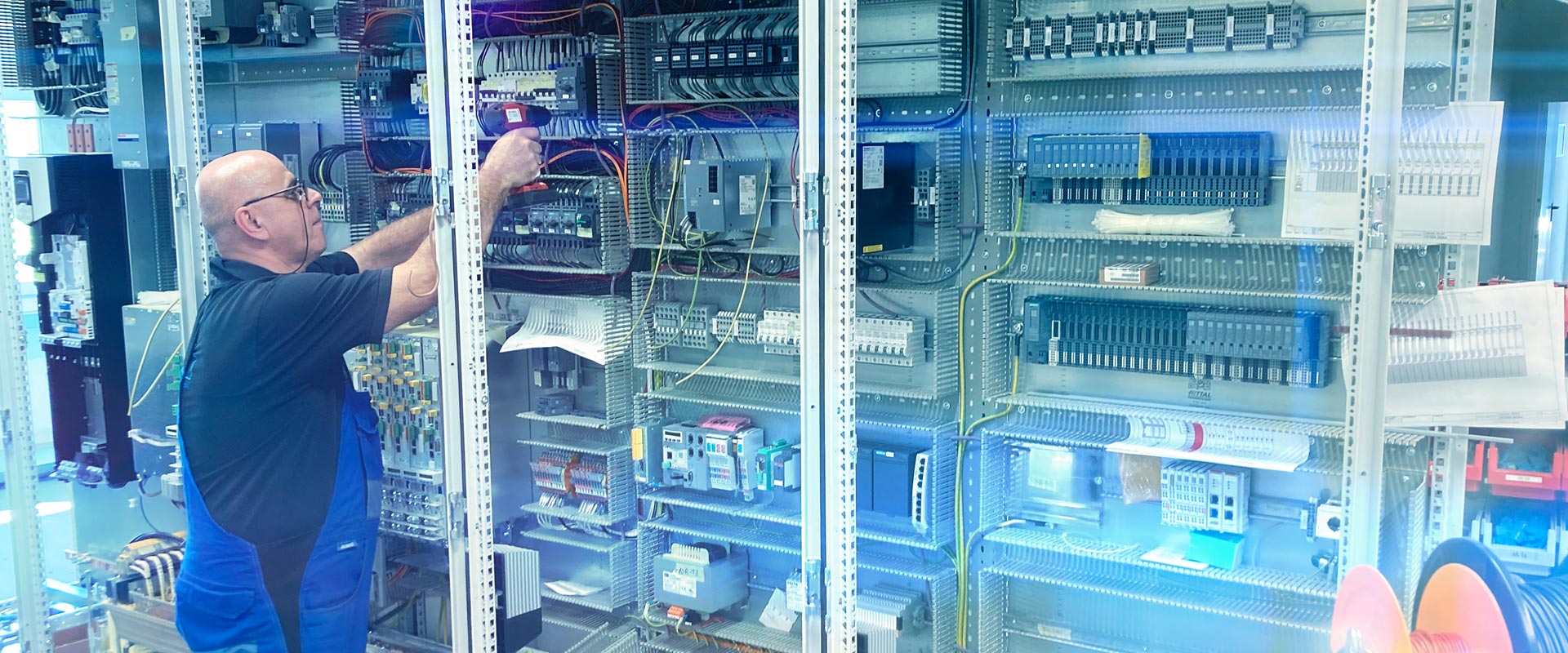

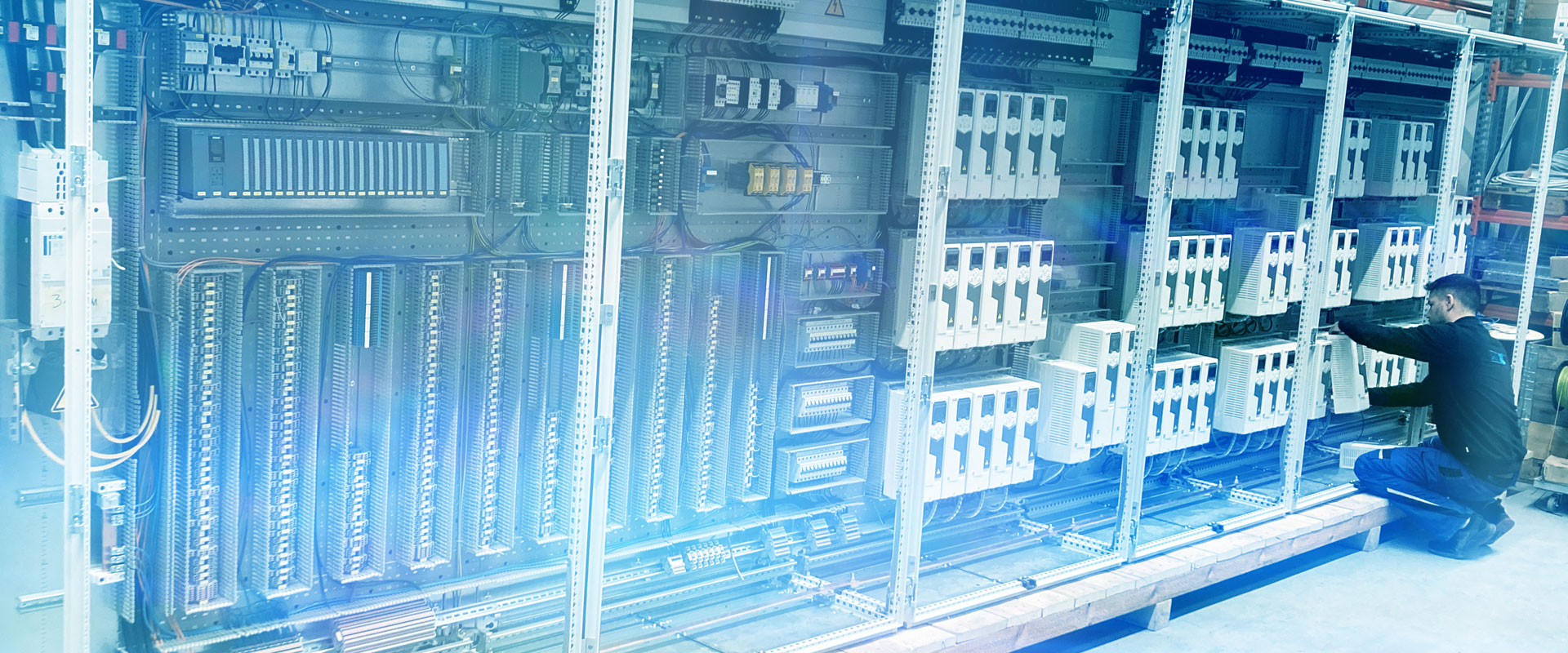

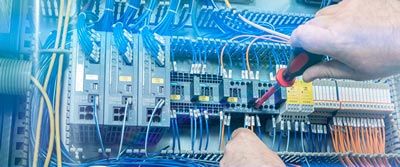

Whether control, measurement or power cabinets with high-current drive technology or combined with fluid technology: the specified tasks are prefabricated by our specialist staff in accordance with European or US standards and, if required, the entire system is assembled and tested in our production hall.

We are able to react extremely flexibly to the integration of product changes in production, not at least thanks to optimised supply chain, documentation and deadline management as well as logistics.

On request, we can also supply all versions with explosion protection for zones 0, 1 and 2, naturally with ATEX certification.

As a UL-certified and listed partner of UL Germany in the UL508A panel shop programme (NITW.E526404 - Industrial Control Panels), we are now also certified and listed with the panel shop "Industrial Control Panel Relating to Hazardous Locations with Intrinsically Safe Circuit Extensions (NRBX.E527084)".

In addition to the premises, we offer good framework conditions for FATs to ensure optimised commissioning, which provides the basis for an optimum service.

PRODUCTION FOR CONTROL CABINET AND CONTROL SYSTEM CONSTRUCTION

Competent, flexible and individual

Control, power and measurement cabinets

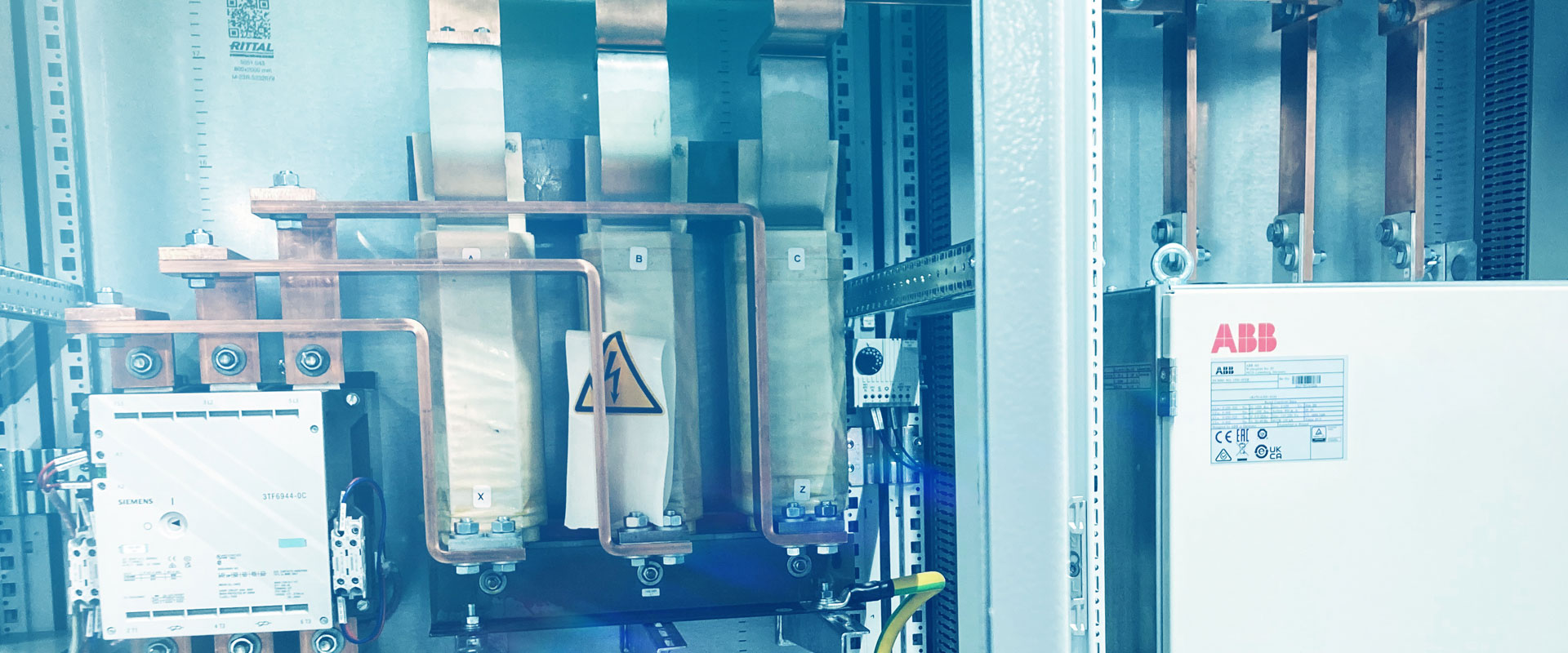

Power cabinets for high-current drive technology
Enclosures according to American standards UL/CSA and worldwide
We build and label according to the Panel Builder programme and UL 508A certificate
Control system construction for the "Ex area"
Equipment cabinets for pneumatic, hydraulic
Control containers
Supply and distribution cabinets, transformer technology
NC-machined control cabinets
Cable set assembly for machines and systems
Automated wire set production for control cabinets
Device assembly
Copper processing

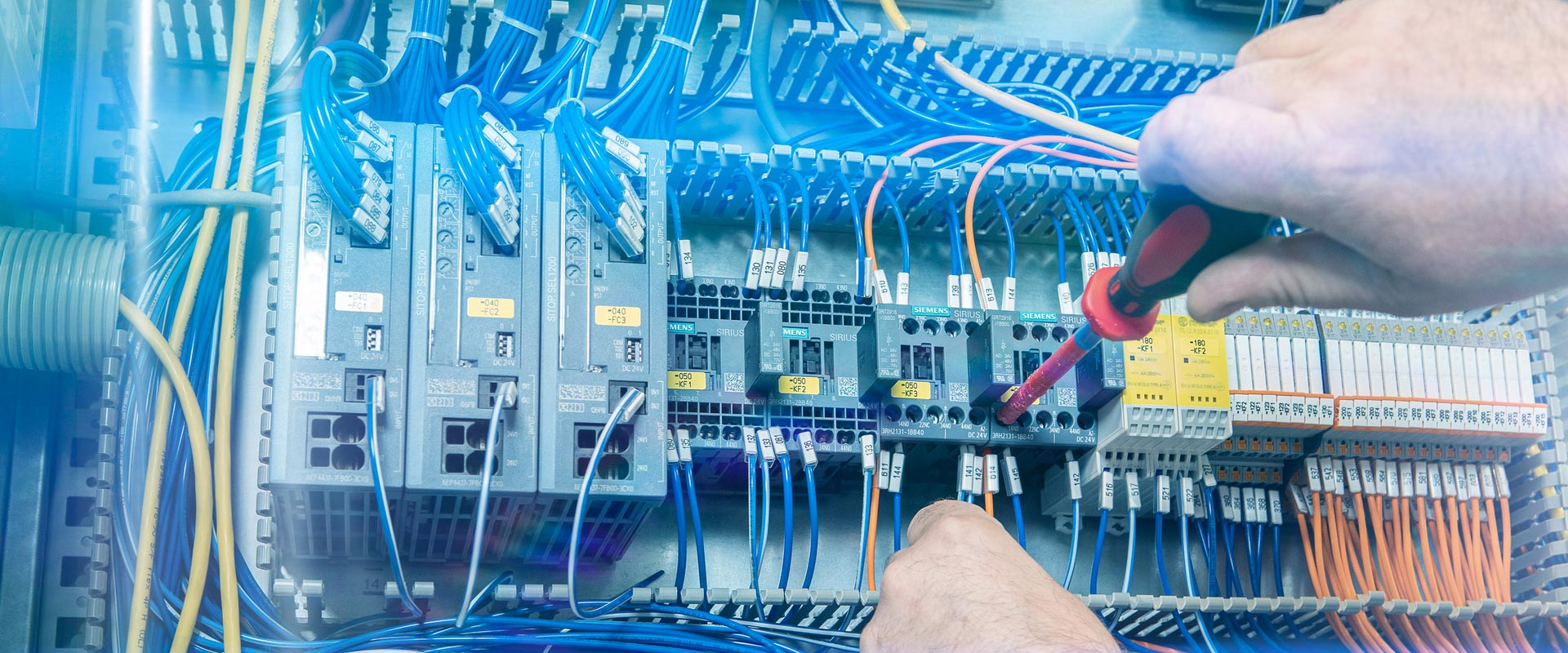

Electrical installation

To fulfil our commitment to providing "system solutions from a single source", we have an installation department that covers a wide range of services for modern electrical / MSR installation. Here, we also emphasise time and cost-saving solutions using the latest installation technologies.

Qualified specialists trained with the best measuring equipment guarantee perfect conditions for first-class work on conversions and extensions to your production systems. We support processes requiring validation at our customers with installation qualification (IQ).
